BlueNRG 232 BLE5 Low Power Bluetooth Module I/O 15 Cansec Wireless

Name: BlueNRG 232 BLE5 Low Power Bluetooth Module IO 15 Cansec Wireless
Brand: Cansec Wireless
Price: 3.27 USD

Buy cheap BlueNRG 232 BLE5 Low Power Bluetooth Module I/O 15 Cansec Wireless product

Brand Name : Cansec Wireless

Model Number : BLE232

Place of Origin : Beijing

MOQ : 100

Price : USD 3.27$ per piece

Payment Terms : T/T

Supply Ability : 20000000 units per year

Delivery Time : 5-8 weeks

Packaging Details : Three layers of protection anti-static bag & moisture-proof & cardboard box ensure transportation safety

Chipset : BlueNRG 232

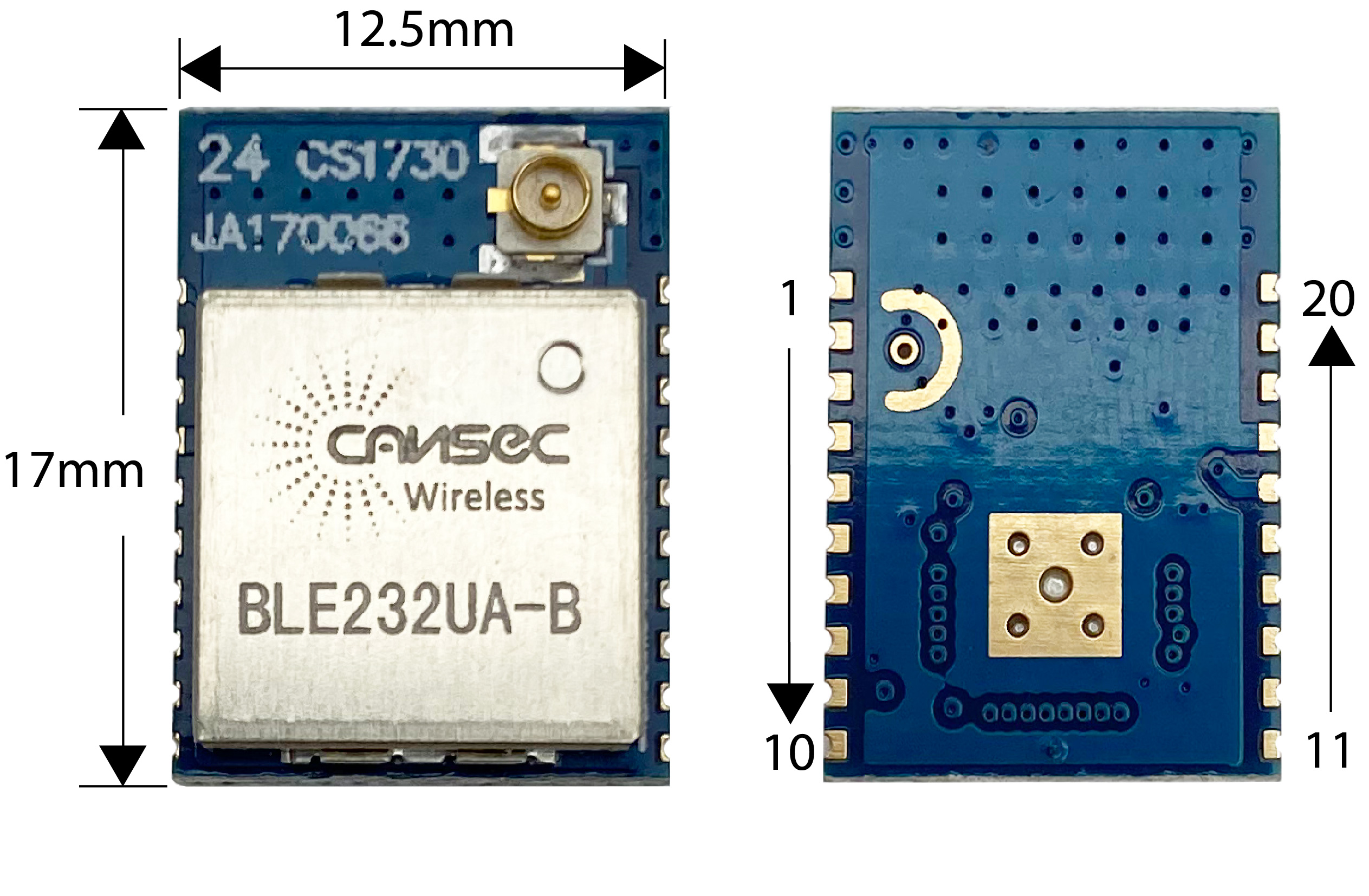

Size : 12.5*18.5*2.6mm

Operating Voltage : 1.8-3.6V

TX Power : 8dBm

TX Current : 15.1mA

RX Sensitivity : -88dBm

RX Current : 7.7mA

Sleep Current Consumption : 1μA

I/O : 15

Protocal : BLE5 & Mesh

Contact Now

BlueNRG 232 BLE5 Low Power Bluetooth Module I/O 15 Cansec Wireless

Small Size Low Power Bluetooth Module IoT Solution Cansec Ble232 St Bluenrg-232 Multi-Protocol module

Parameter		Min	Typ	Max	Unit
Operation Voltage		1.7	-	3.6	V
Operation Temperature		-30	-	85	°C
Current Consumption	Rest	-	5	-	mA
	Standby	-	500	-	mA
	Transmit Mode (8dBm)	-	15.1	-	mA
TX Power		-	-	8	dBm
RX Sensitivity		-	-	-88	dBm

Small Size Low Power Bluetooth Module IoT Solution Cansec Ble232 St Bluenrg-232 Multi-Protocol module

Description

BLE232SA/UA series module is designed based on ST company's BlueNRG-2. The BlueNRG-2 is a very low power Bluetooth low energy (BLE5.0)

BlueNRG 232 BLE5 Low Power Bluetooth Module I/O 15 Cansec Wireless

FAQ
 Q1: Are you a factory or trade company?
 A1: We are a professional factory with 25 years experience.
 Q2: Can you accept OEM/ODM?
 A2: Sure, we have rich OEM&ODM experience.
 Q3: Do you have quality assurance?
 A3; Each of our products has undergone quality testing and has two years of free after-sales service.
