ST BLUENRG-2 RTS Module Wireless Bluetooth Module BLE232SA-A

Name: ST BLUENRG2 RTS Module Wireless Bluetooth Module BLE232SAA
Brand: Cansec Wireless
Price: 3.27 USD

Buy cheap ST BLUENRG-2 RTS Module Wireless Bluetooth Module BLE232SA-A product

Brand Name : Cansec Wireless

Model Number : BLE232

Place of Origin : Beijing

MOQ : 100

Price : USD 3.27$ per piece

Payment Terms : T/T

Supply Ability : 20000000 units per year

Delivery Time : 5-8 weeks

Packaging Details : Three layers of protection anti-static bag & moisture-proof & cardboard box ensure transportation safety

Chipset : BlueNRG 232

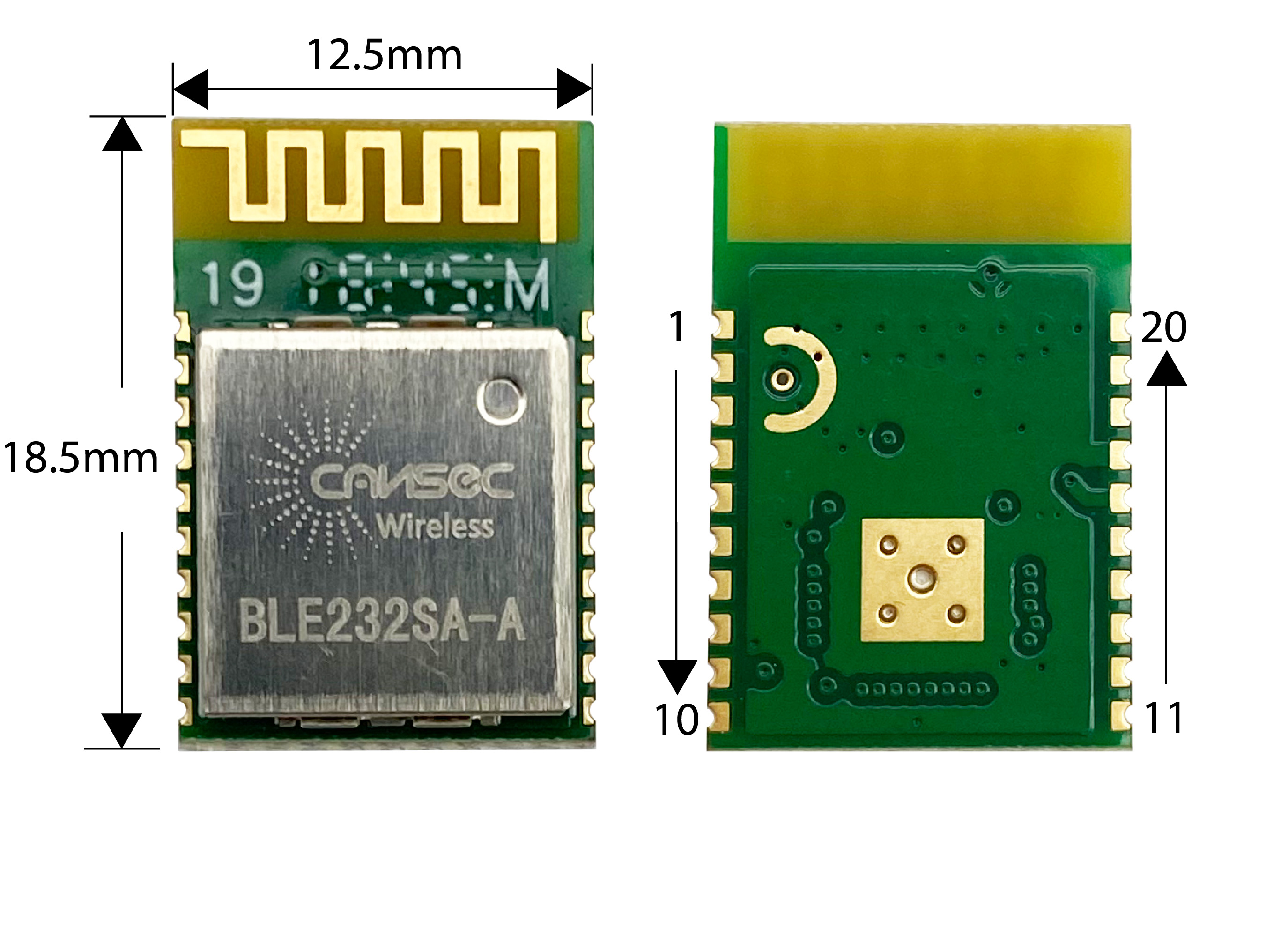

Size : 12.5*18.5*2.6mm

Flash / RAM : 256KB / 24KB

TX Power : 8dBm

TX Current : 15.1mA

RX Sensitivity : -88dBm

RX Current : 7.7mA

Sleep Current Consumption : 1μA

I/O : 15

Protocol : BLE5 & Mesh

Antenna : PCB antenna

Range : 100m

Frequency : 2.4GHz

Contact Now

ST BLUENRG-2 RTS Module Wireless Bluetooth Module BLE232SA-A

Iot smart home Cansec Ble232SA-A St Bluenrg-2 wireless Bluetooth Module

Parameter		Min	Typ	Max	Unit
Operation Voltage		1.7	-	3.6	V
Operation Temperature		-30	-	85	°C
Current Consumption	Rest	-	5	-	mA
	Standby	-	500	-	mA
	Transmit Mode (8dBm)	-	15.1	-	mA
TX Power		-	-	8	dBm
RX Sensitivity		-	-	-88	dBm

Iot smart home Cansec Ble232SA-A St Bluenrg-2 wireless Bluetooth Module

Description

BLE232SA/UA series module is designed based on ST company's BlueNRG-2. The BlueNRG-2 is a very low power Bluetooth low energy (BLE5.0)single-mode system-on-chip compliant with Bluetooth specification.

The BlueNRG-2 extends the features of the award-winning BlueNRG network processor, enabling the usage of embedded Cortex M0 for running user application code.

The BlueNRG-2 includes 256kB of programming Flash memory, 24 kB of static RAM memory with retention (two 12kB banks) and SPI, UART, I2C standard communication interface peripherals. It also features multifunction timers, watchdog, RTC and DMA controller.

An ADC is available for interfacing with analog sensors, and for reading the measurement of the integrated battery monitor. A digital filter is available for processing PDM stream.

The BlueNRG-2 offers the same excellent RF performance as the BlueNRG radio, and the integrated high-efficiency DC/DC converter keeps the same ultra-low power characteristics, but the BlueNRG-2 improves the BlueNRG sleep mode current consumption allowing a further increase in the battery lifetime of the applications.

Applications

Watches
Fitness, wellness and sports
Consumer medical
Security/proximity
Remote control
Home and industrial automation
Assisted living
Mobile phone peripherals
Lighting PC peripher

ST BLUENRG-2 RTS Module Wireless Bluetooth Module BLE232SA-A

  	 			Pad Numbe

Name

Pin Type

Description

 			1 			RESET_N 			I 			System reset

2

DIO13
 			OD 			GPI 13
 			I 			UART_CTS
 			I/O 			I2C1_DAT

3

DIO12
 			OD 			GPI 12
 			I/O 			I2C1_CLK
 			4 			GND 			Ground Pin 			Connect to GND
 			5 			VCC 			POWER 			Battery voltage input

6

DIO11
 			I/O 			General-purpose digital I/O
 			I 			UART_RXD
 			I/O 			SPI_CS1
 			O 			CLK_32K

7

DIO10
 			I/O 			General-purpose digital I/O
 			I 			SWDIO
 			O 			SPI_OUT
 			O 			CLK_32K

8

DIO9
 			I/O 			General-purpose digital I/O
 			I 			SWCLK
 			I 			SPI_IN
 			O 			XO16/32M

9

DIO8
 			I/O 			General-purpose digital I/O
 			O 			UART_TXD
 			I/O 			SPI_CLK
 			I 			PDM_DATA

10

DIO7/BOOT

I/O
 			Bootloader pin/
General purpose digital

 			I 			UART_CTS
 			I/O 			I2C2_DAT
 			O 			PDM_CLK

11

DIO6
 			I/O 			General purpose digital I/O
 			O 			UART_RTS
 			I/O 			I2C2_CLK
 			I 			PDM_DATA

12

DIO5
 			I/O 			General purpose digital I/O
 			O 			UART_TXD
 			I/O 			I2C2_DAT
 			O 			PWM1

13

DIO4
 			I/O 			General purpose digital I/O
 			I 			UART_RXD
 			I/O 			I2C2_CLK
 			O 			PWM0

14

DIO3
 			I/O 			General purpose digital I/O
 			O 			PWM1
 			I 			SPI_IN

15

DIO2
 			I/O 			General purpose digital I/O
 			O 			PWM0
 			O 			SPI_OUT
 			O 			PDM_CLK

16

DIO1
 			I/O 			General purpose digital I/O
 			O 			UART_RTS
 			I/O 			SPI_CS1
 			I 			PDM_DATA

17

DIO0
 			I/O 			General purpose digital I/O
 			I 			UART_CTS
 			I/O 			SPI_CLK
 			O 			CPUCLK

18

ANATEST0/DIO14
 			I/O 			Analog output/ General purpose digital
 			I/O 			I2C1_CLK
 			I/O 			SPI_CLK
 			19 			ADC1 			I 			ADC input 1
 			20 			ADC2 			I 			ADC input 2
